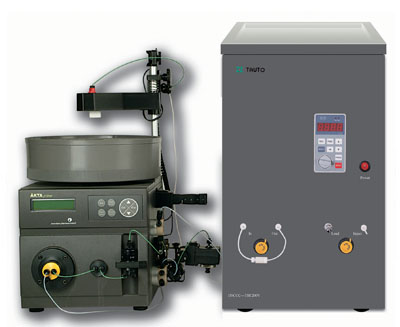

TBE-300B whole system



TBE-300B whole system is an integration of TBE -300B, pump, detector, workstation and circulated water batch which are all manufactured by us in order to meet customers’ request. It need not any solid support carrier and has unique advantages in the isolation and purification work of natural products and antibiotics.

             COOPERATION DECLARATION

   Advantages of the TBE-300B whole system:

  • Convenient operation
    Dual channel pump, gradient elution, system balanced swiftly
    Solvent changed conveniently, on-line monitoring,
  • Great sample load
    can reach up to gram level
  • High separation efficiency
    Suitable for isolation and extraction of natural products, the purity can be up to 99%
  • High recovery rate
    Eliminate the irreversible absorption loss and denaturalization caused by solid support carriers.
  • Multi separation coils
    Three separation coils are well integrated and the balance of the system will not be influenced when the solvent system is changed. Working stability is high.
  • Online detection
  • Temperature control module
    Improve the repetitiveness, accuracy of the experiment effectively via avoiding the changes of environment. Helpful for optimize the separation method.

System Specifications and Working Data

Product

Model

Description

Qty

HSCCC

TBE-300B

Power Source: 220V±20V or 110V±10V or according to the customer’s request; 50±0.5Hz
Flow rate range: 2.0-4.0ml/min
Column Capacity: 300 ml; Sample loop: 20 ml
Sample load: mg to 10g; Revolution speed: 800-1000 rpm
Pressure range: 0-2MPa
Revolution speed range: 700-1000 rpm

1

Pump

TBP5002

Flow rate:0.1-50ml/min; Increment:0.5ml/min? ;Pressure range :0-2Mpa
Flux calibration, Over pressure protection; Dual channel design, small impulse

1

Detector

TBD2000

Light source: Deuterium lamp
Wavelength: 214, 254, 280,340,365, 405 nm(choose four);
Baseline noise: ≤0.00025A
Scaling range:0-100%T,2A,1A,0.5A,0.2A, 0.1A,0.05A; Flow cell: 75ul

1

UV500

Wavelength: full wavelengths from 190-700nm

1

Circulated water Bath

DC0506

Temperature control range: -5~95 ℃; Precision: 0.1 ℃
Capacity of circulating water: ≧8L /min

1

Fraction collector

N/A

Do not include. If you want, please let us know.
