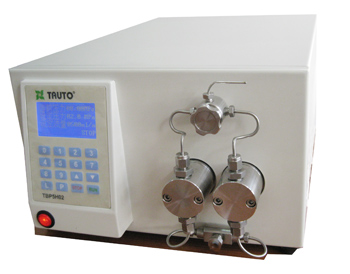

TBP 5H02 Constant Flow Pump



TBP series constant flow pumps pipeline and pump head is made of 316L stainless steel which is resistant to organic solvents. This series constant flow pump is mainly used in the domains of metal, chemical engineering, pharmacy, biology, biochemistry, food and etc. It satisfies the demands of liquid delivery in institutes and enterprise units in the domains above-mentioned.

SPECIFICATIONS

Flow Rates

1-500ml/min

Pressure

0 2.0MPa

Pulsation

0.1MPa

Pressure Accuracy

0.05MPa

Flow Accuracy

2% (1 100ml/min)

1.5% (100 500ml/min)

Flow Precision

1.5% (1 100ml/min)

1% (100 500ml/min)

Pipeline Materials Ruby316L stainless steelZirconia ceramics

Power Source

220V10%,50/60Hz

Power

150W

Dimensions

400 mm 290 mm 170 mm

Weight

22Kg

STANDARD FEATURES & CONTROLS

  • Dual Self Flushing Pump Heads for Reduced Pulsation
  • Dual ball and High Quality Plunger for Consistent and Precise Flow Performance
  • Real-time pressure monitoring.
  • Simple Front Panel Key Pad Controls with Big LED Display
  • Overvoltage protection and Flow Correction System
  • Materials resistant to chemicals used, including organic solvents
  • Stainless Steel or PEEK Fluid Path
  • Prime Purge Valve
  • RS-232 Serial Com Port for Complete Control & Status Monitoring

APPLICATION FIELDS

  • Chromatography analysis
  • Organic synthesis
  • Botanic chemistry
  • Bioengineering
  • Fine chemistry
  • Pharmaceutical chemistry
  • Life science
  • Environment protection

Control System Software

  • Real-time Display of Current Pressure, Set Pressure and Set Flow Rate
  • Real-time Display In Curve of Working Pressure
  • Operation via Computer
  • Timing Function For The Facility of Working Time Setting
  • Function of Saving Current Working Pressure For Checking
  • Function of Printing Important Parameters Such As Current Pressure
